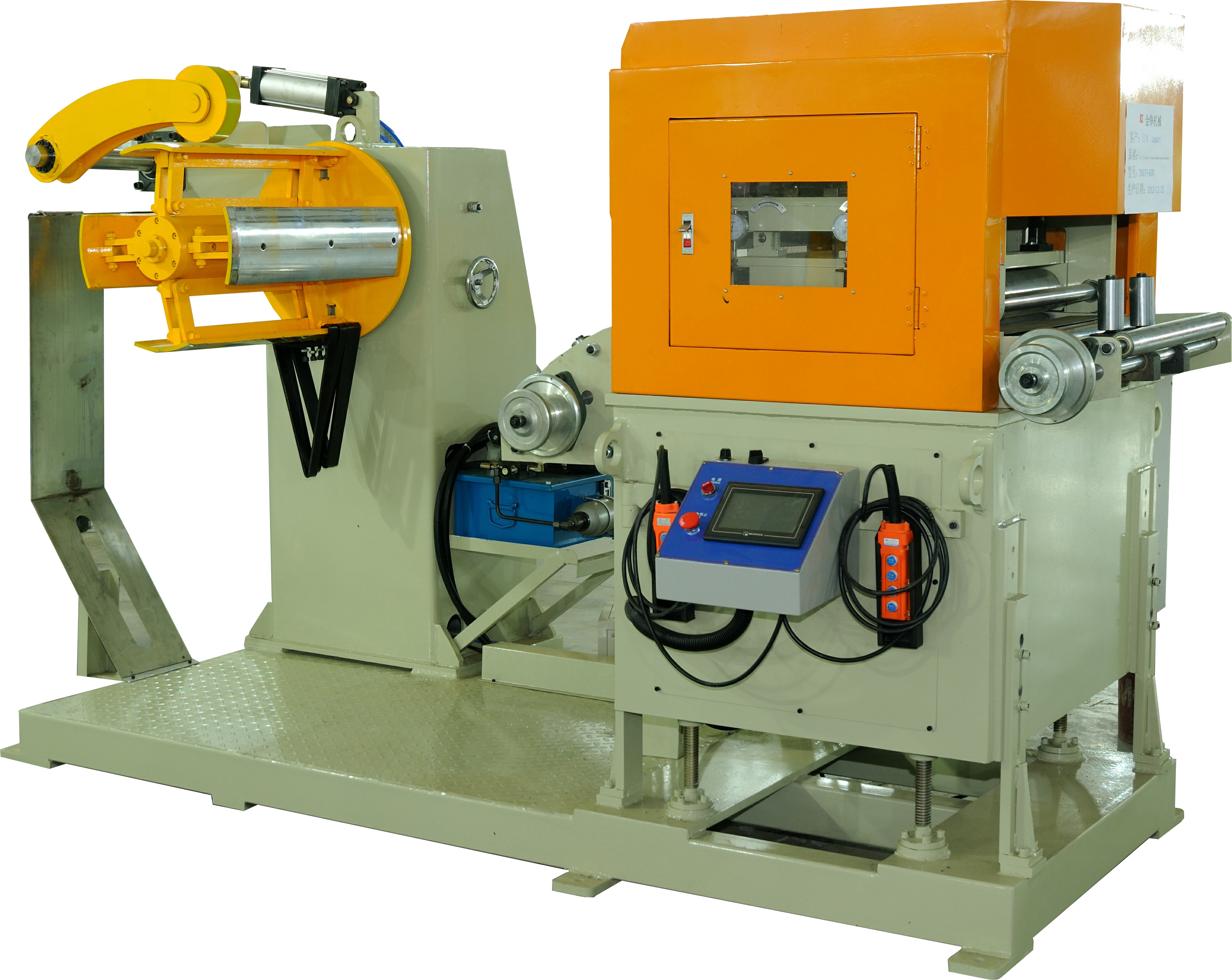

Mid-range 3-in-1 feeder unit — coil width up to 300 mm, suitable for precision stamping applications.
The LNCF3 3-in-1 decoiler, straightener, and servo feeder is designed for mid-range press-room coil feed applications. Handling material up to 2.0 mm thick and 300 mm wide, it combines the three core coil-feed functions in a compact, single-unit design.
The LNCF3 is suitable for progressive stamping dies producing automotive components, electronic housings, and appliance brackets. Its servo feed system offers precise digital pitch control with press synchronisation.
3-in-1: decoiler + straightener + servo feeder in one compact unit
Handles wider coil widths up to 300 mm
Upper roller adjustment by digital watch
Servo motor feed — programmable pitch from HMI
Pass line height adjustable by motor-driven lifter
Press synchronisation via cam signal or encoder
For Metals: carbon steel, stainless steel, aluminium, copper
| Material thickness | 0.3–2.0 mm |
| Material width | 50–300 mm |
| Coil weight (max) | 300 kg |
| Feed length | 1–9,999.9 mm |
| Feed accuracy | ±0.1 mm |
| Straightening rollers | 9 rolls |
| Sync method | Cam signal / encoder |
| Control | NC servo + HMI |
* Specifications are indicative. Contact KingJime engineers for custom configurations and exact parameters.
