Programmable high-speed servo roller feeder for stamping presses — precise pitch, quick-change tooling.

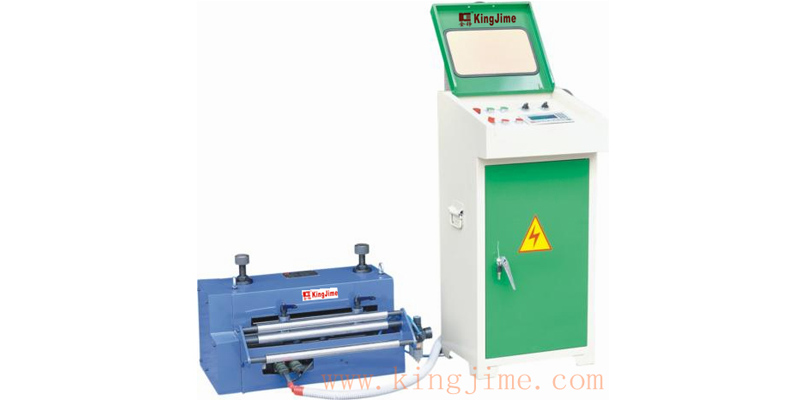

The KingJime NC servo feeder for press coil feed is a high-speed servo-driven roller feeder designed for integration with stamping presses. Feed length (pitch) is set digitally on the HMI touchscreen — no mechanical adjustment required. The feeder synchronises with the press crankshaft angle via a cam signal or encoder.
The NCF series handles coil width up to 500 mm and thickness up to 3.2 mm, with feed speeds up to 600 mm per second. Compatible with all major press brands and suitable for progressive die, compound die, and transfer die operations.
Servo motor drive — no mechanical feed adjustment needed
Digital pitch setting from HMI — accurate to 0.1 mm
Cam-signal or encoder synchronisation with press crankshaft
Quick-release upper roller for easy material threading
Suitable for progressive, compound, and transfer die operations
Compact design — mounts directly on press frame
For Metals: carbon steel, stainless steel, aluminium, copper, brass
| Material thickness | 0.1–3.2 mm |
| Material width | 50–500 mm |
| Feed length | 1–9,999.9 mm (digital) |
| Feed speed (max) | 600 mm/s |
| Feed accuracy | ±0.1 mm |
| Roller diameter | 50 / 70 / 90 mm |
| Sync method | Cam signal / encoder |
| Control | NC servo + HMI |
* Specifications are indicative. Contact KingJime engineers for custom configurations and exact parameters.
