Space-saving combined decoiler and straightener for press-room coil feed — minimal footprint, fast setup.

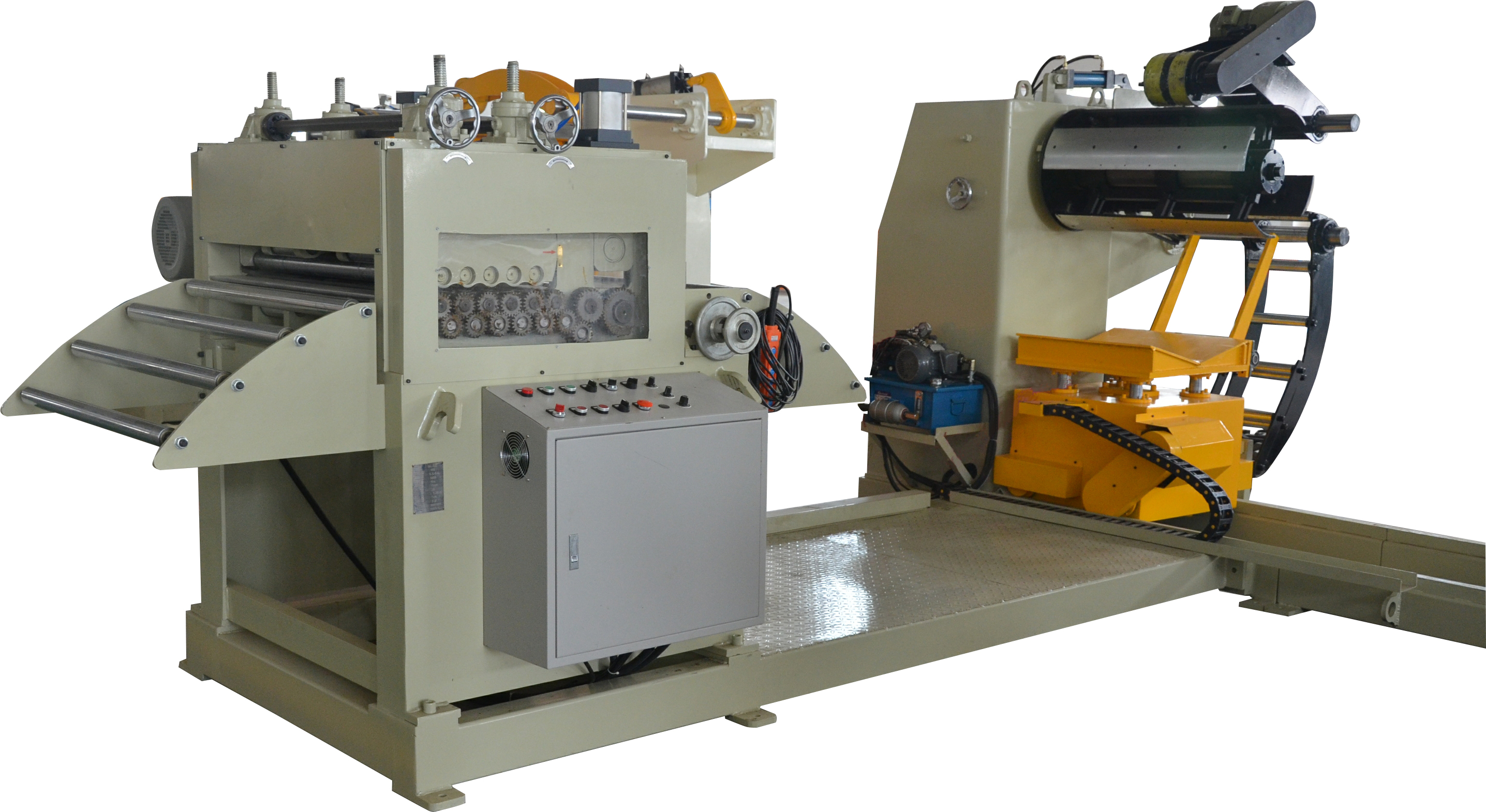

The 2-in-1 compact decoiler and straightener combines an uncoiling unit and a precision straightener in one compact machine. Designed for press-room coil feed applications where floor space is limited, it eliminates the need for separate decoiler and straightener units.
The integrated design simplifies installation and reduces feed line length. Suitable for coil material up to 500 mm wide and 3.2 mm thick, the 2-in-1 is typically paired with a separate NC servo feeder or used with a zig-zag strip layout for maximum material utilisation.
Decoiler and straightener combined in one compact unit
Saves floor space compared to separate machine layout
Simple pass-line height adjustment by hand wheel
Upper roller adjustment by digital thickness gauge
Compatible with NC servo feeder and 3-in-1 configurations
Optional zig-zag strip feeding for material saving
For Metals: carbon steel, stainless steel, aluminium, copper
| Material thickness | 0.3–3.2 mm |
| Material width | 50–500 mm |
| Coil weight (max) | 500 kg |
| Coil OD (max) | 600 mm |
| Straightening rollers | 9 rolls |
| Pass line height | Adjustable |
| Drive | Motor-driven pay-off |
| Frame | Welded steel |
* Specifications are indicative. Contact KingJime engineers for custom configurations and exact parameters.
