Four-hi and multi-roll levelers — superior flatness correction for strip, coil, and plate up to 25 mm.
The KingJime hi-leveler cut to length line and plate leveling machine range includes the KJWH series multi-roll levelers for steel sheets and strips, the W43G series frame-structure levelers with up-and-down beam movement for heavy plate, and the KuWSKJiH series for easy high-efficiency operation.
The range is widely used in metallurgy, shipbuilding, boiler making, and machinery manufacturing. It can be supplied as a standalone leveling machine or integrated into a complete cut-to-length line. Handles material from 0.5 mm thin strip up to 25 mm thick plate.

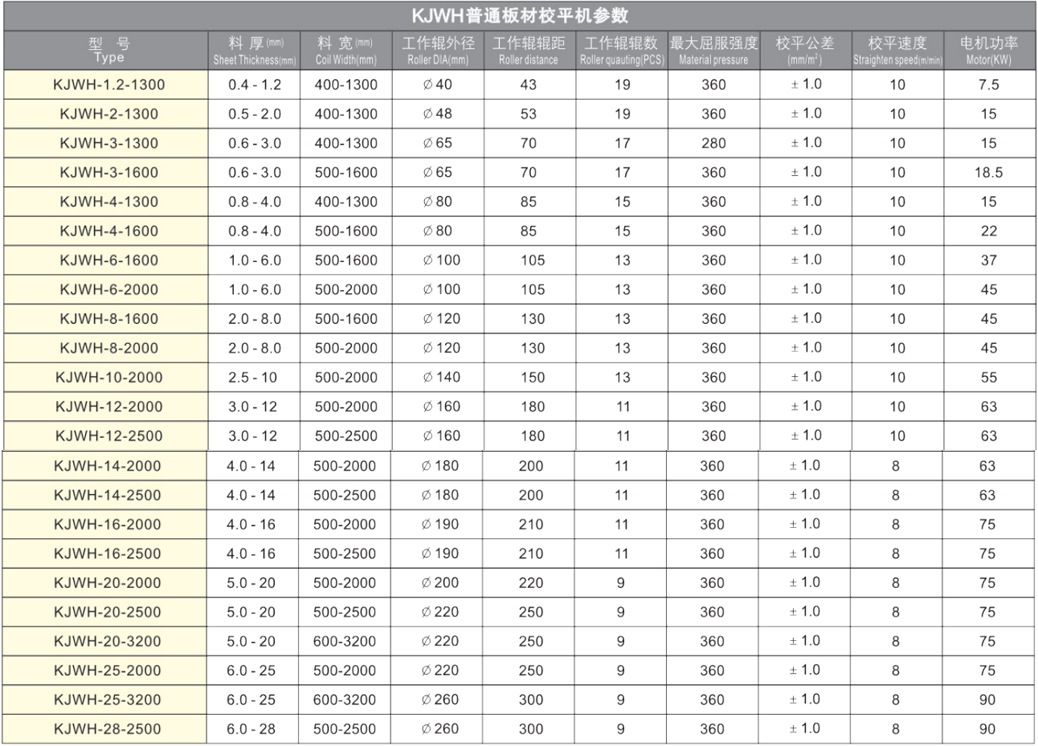

KJWH series: multi-roll levelers for strip and thin sheet
W43G series: frame structure, beam up-and-down — for heavy plate
KuWSKJiH series: easy operation with high levelling efficiency
Handles 0.5–25 mm material thickness
Optional integration as complete cut-to-length line
Widely used in shipbuilding, boiler making, metallurgy
For Metals: carbon steel, stainless steel, structural steel, aluminium
| Material thickness | 0.5–25 mm |
| Material width | 300–3,000 mm |
| Straightening rolls | 17–25 rolls |
| Flatness accuracy | ≤2 mm/m |
| Roll diameter | 40–180 mm |
| Line speed | 0–30 m/min |
| Roll material | GCr15 hardened steel |
| Control | PLC + HMI |
* Specifications are indicative. Contact KingJime engineers for custom configurations and exact parameters.
