Heavy-load coil uncoiling up to 10 T — single or double head configurations for every press room.

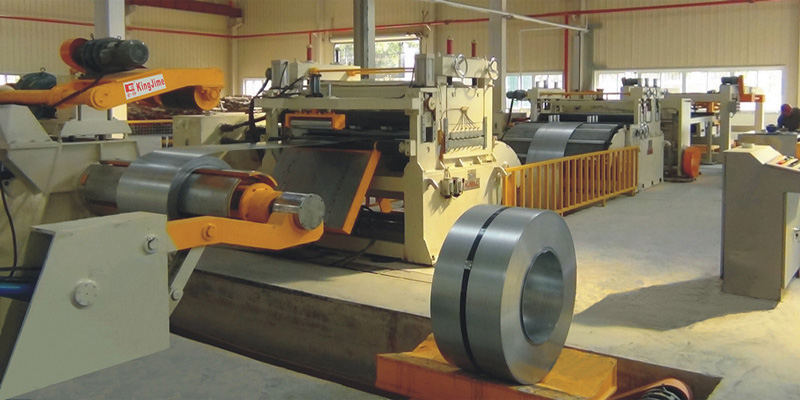

The KingJime decoiling machine is mainly used to decoil various metal coils and work together with straighteners, feeders, or full coil processing lines. The MTC series steel coil decoiling machine is compatible with: slitting lines, cut-to-length lines, press stamping lines, and pipe forming lines.
Available in single-head and double-head configurations, the decoiler handles coil inner diameters from 460 to 530 mm and outer diameters up to 1,500 mm. Motorised mandrel expansion and an optional coil loading car make setup fast and safe.
Motorised mandrel expansion for quick, safe coil loading
Optional hydraulic coil loading car for heavy coils
Adjustable coil guide arms with fine-screw width adjustment
Speed synchronisation sensor for automatic pay-off control
Single or double-head design to suit different production volumes
Compatible with all KingJime slitting, CTL, and stamping lines
Robust cast-iron housing with precision-ground spindle
Safety brake system for controlled stopping
| Coil inner diameter | 460–530 mm |
| Max coil outer diameter | 1,500 mm |
| Max coil width | 600 mm |
| Loading capacity | 3 T / 5 T / 10 T |
| Mandrel expansion | Manual / Motorised |
| Head types | Single / Double |
| Drive | AC motor with VFD |
| Control | PLC + HMI |
* Specifications are indicative. Contact KingJime engineers for custom configurations and exact parameters.
