Compact entry-level slitting line for light-gauge coil — reliable PLC control and precise strip widths.

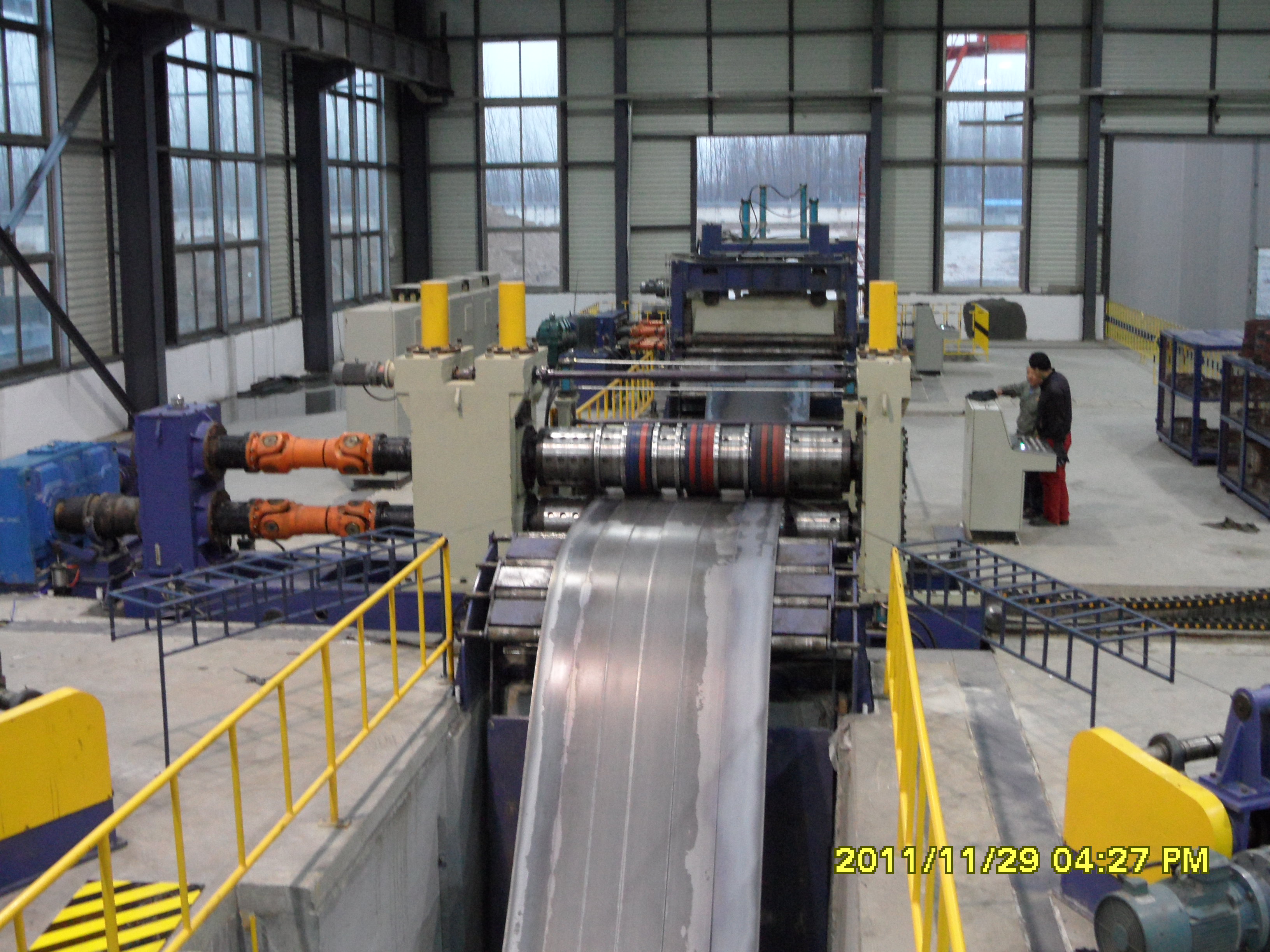

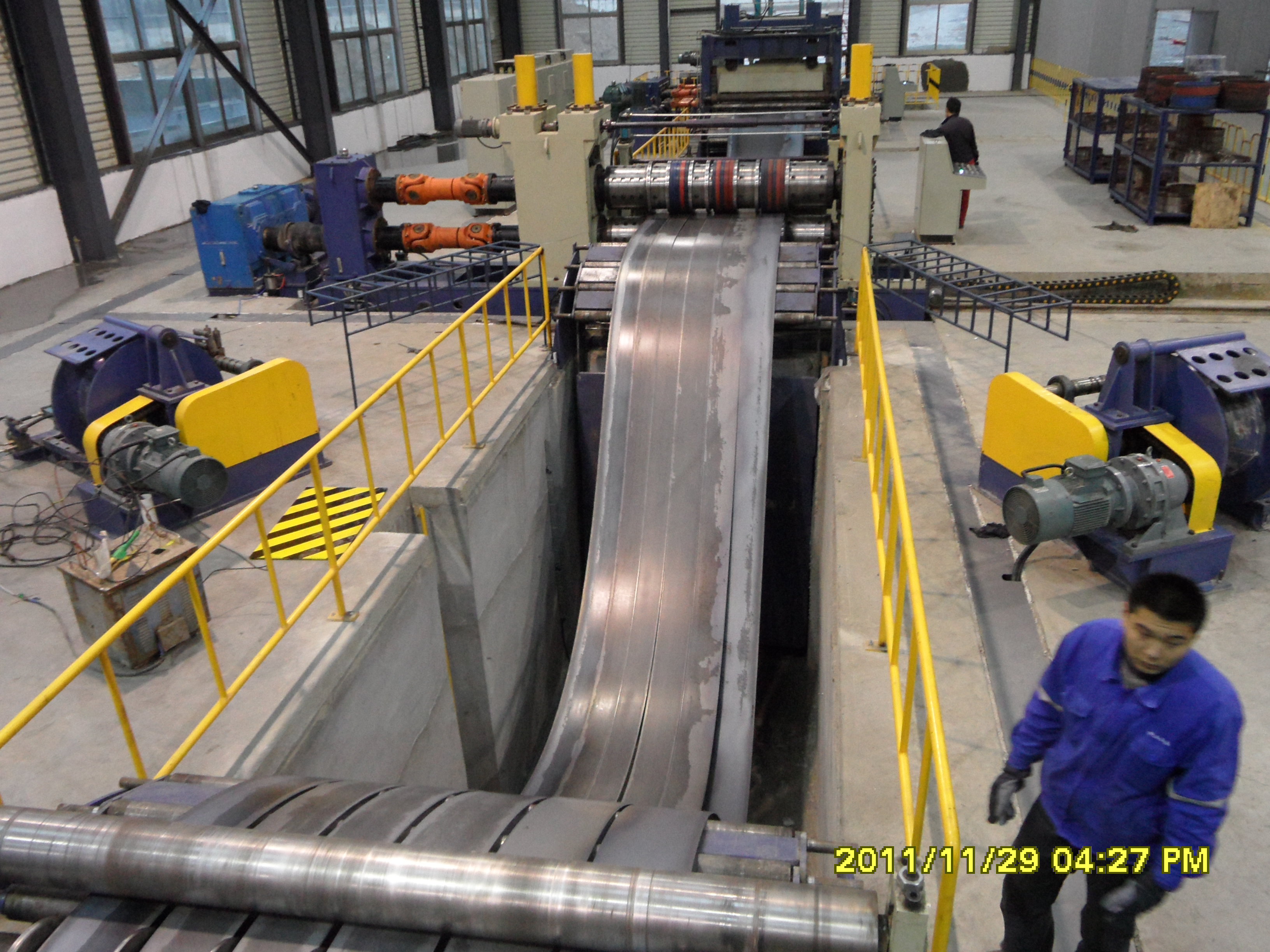

The KJS40 coil slitting line machine is designed for thin-gauge metal coil up to 1.5 mm thick. Ideal for small-to-medium service centres processing carbon steel, stainless steel, aluminium, and copper strip. The complete line includes coil car, uncoiler, straightener, slitter head, scrap winder, and tension recoiler.
With full PLC control and an HMI touchscreen, operators can programme strip widths, line speed, and tension parameters digitally. The circular blade slitter head delivers clean, burr-free cuts with minimal scrap.
Full line: coil car → uncoiler → straightener → slitter → scrap winder → recoiler
PLC + HMI touchscreen for digital parameter input and monitoring
Circular blade slitter head with quick-change arbor system
Belt bridle tensioner for surface-sensitive materials
Automatic tension control during recoiling
For Metals: carbon steel, galvanised steel, silicon steel, tinplate, stainless steel, aluminium, copper
| Material thickness | 0.3–1.5 mm |
| Coil width | 50–1,000 mm |
| Coil weight (max) | 5 T |
| Line speed | 0–80 m/min |
| Number of strips | Up to 20 |
| Width tolerance | ±0.1 mm |
| Coil ID | 460–530 mm |
| Control | PLC + HMI |
* Specifications are indicative. Contact KingJime engineers for custom configurations and exact parameters.
