NC precision cut-to-length line for 1–6 mm coil — delivering flat sheets with tight dimensional tolerances.

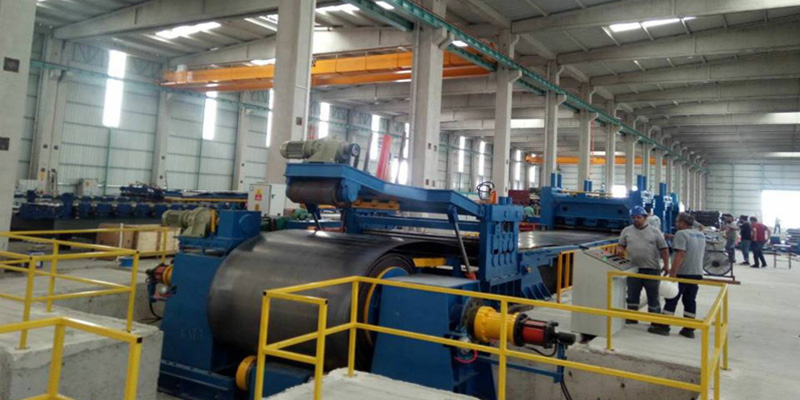

The KJH25 series NC precision cut to length line is designed for material 1–6 mm in thickness and 1,250 mm in width. The machine consists of coil car, assisting support, decoiler, peeler bar, straightener, NC servo feed, guillotine shear, and stacking conveyor.
With PLC computer display, the whole line is controlled digitally, ensuring highly automatic operation with good straightening effect, precision cutting length, and optional collecting/coating functions. Suitable for carbon steel, stainless steel, galvanised steel, and aluminium coil.
Full line: coil car → decoiler → peeler → straightener → NC servo feed → guillotine shear → stacking
PLC + HMI digital control — highly automatic operation
Precision straightening rollers for excellent flatness
NC servo feed for accurate cut lengths — tolerance ±0.5 mm
Hydraulic guillotine shear with adjustable blade gap
Optional coil coating and automatic sheet collecting
For Metals: carbon steel, galvanised steel, stainless steel, aluminium
| Material thickness | 1–6 mm |
| Material width | 300–1,250 mm |
| Sheet length | 500–6,000 mm |
| Coil weight (max) | 10 T |
| Line speed | 0–30 m/min |
| Length tolerance | ±0.5 mm |
| Straightening rollers | 17 rolls |
| Control | NC PLC + HMI |
* Specifications are indicative. Contact KingJime engineers for custom configurations and exact parameters.
