Purpose-built for structural steel processing — handles 3–16 mm coil with hydraulic straightening.

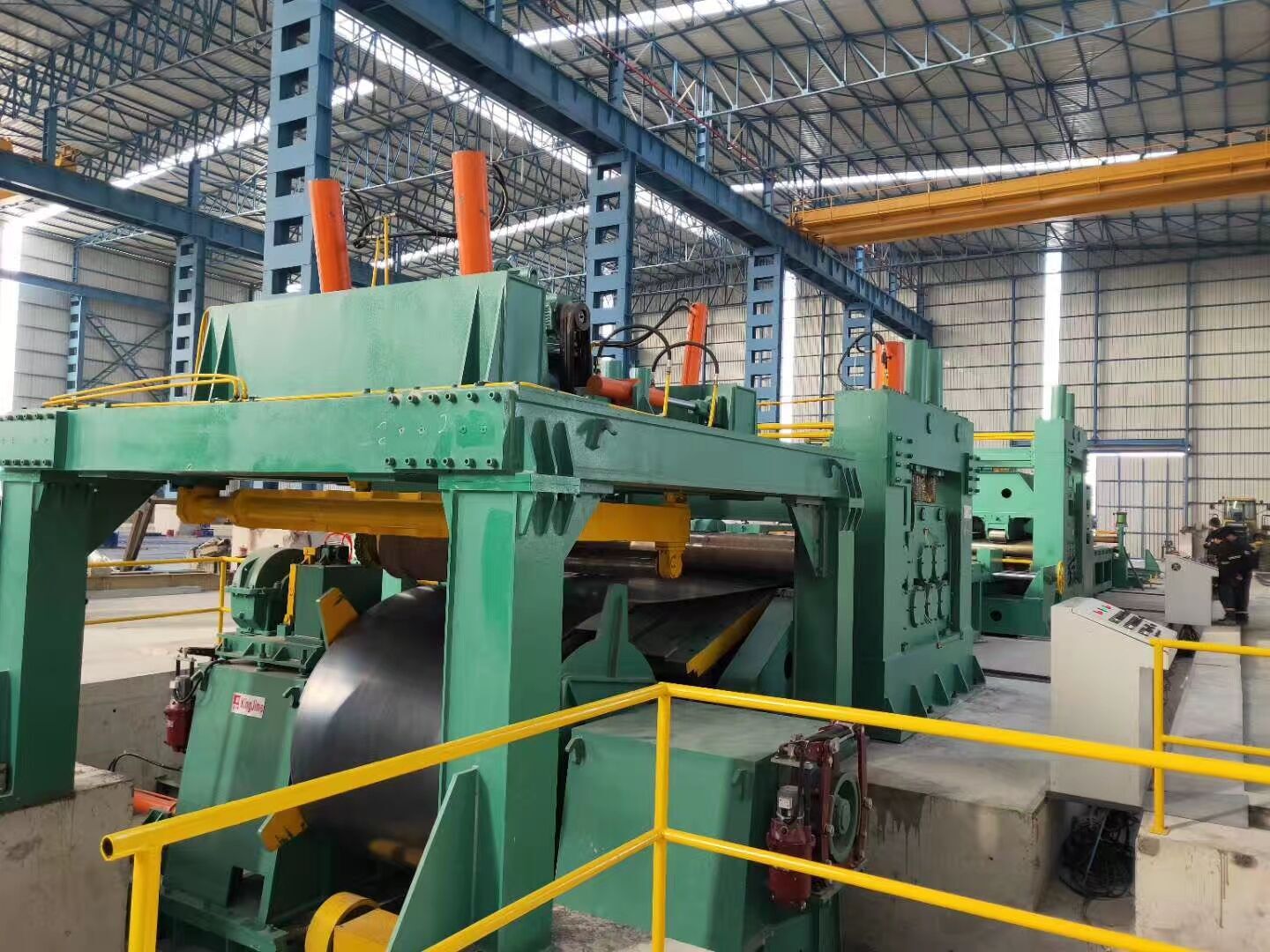

This heavy-gauge cut to length line is engineered for coil material 3–16 mm in thickness and up to 2,500 mm wide. The line includes a high-capacity hydraulic decoiler, heavy-duty levelling machine, NC servo feed, and hydraulic shear, all PLC controlled.
Used extensively in structural steel processing, boiler manufacturing, shipbuilding, and construction, the line delivers flat, accurate plates from heavy-gauge coil at high production rates.
High-capacity hydraulic decoiler — up to 30 T coil weight
Heavy-duty leveller with back-up rolls for thick plate
NC servo feed with hydraulic clamping for precise cut lengths
Hydraulic guillotine shear — heavy-gauge construction
PLC + HMI with automatic production counting
Robust fabricated steel frame — built for continuous production
For Metals: carbon steel, high-strength steel, structural steel
| Material thickness | 3–16 mm |
| Material width | 500–2,500 mm |
| Sheet length | 1,000–12,000 mm |
| Coil weight (max) | 30 T |
| Line speed | 0–15 m/min |
| Length tolerance | ±1.0 mm |
| Levelling rolls | 9–13 rolls |
| Control | PLC + HMI |
* Specifications are indicative. Contact KingJime engineers for custom configurations and exact parameters.
